Mockup Transfer Case Kit

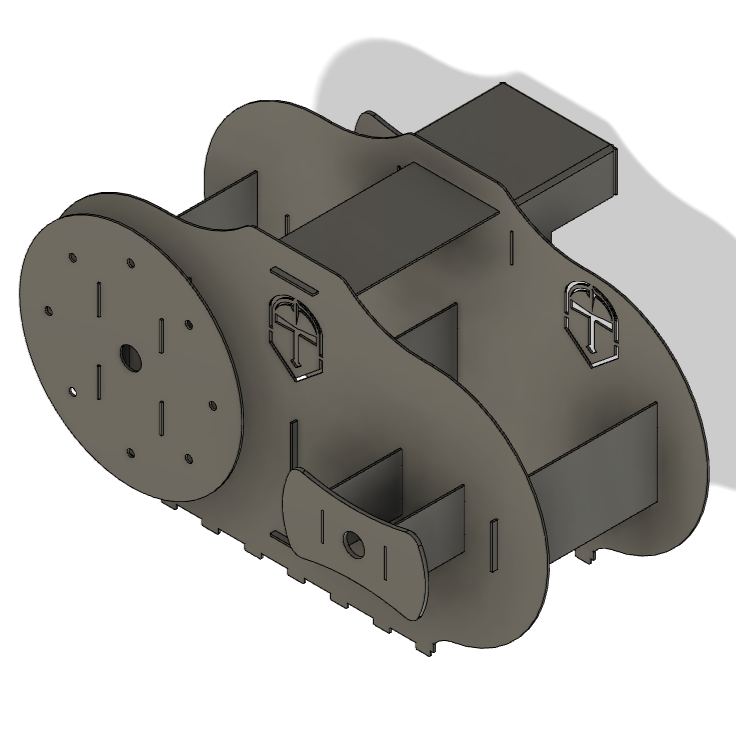

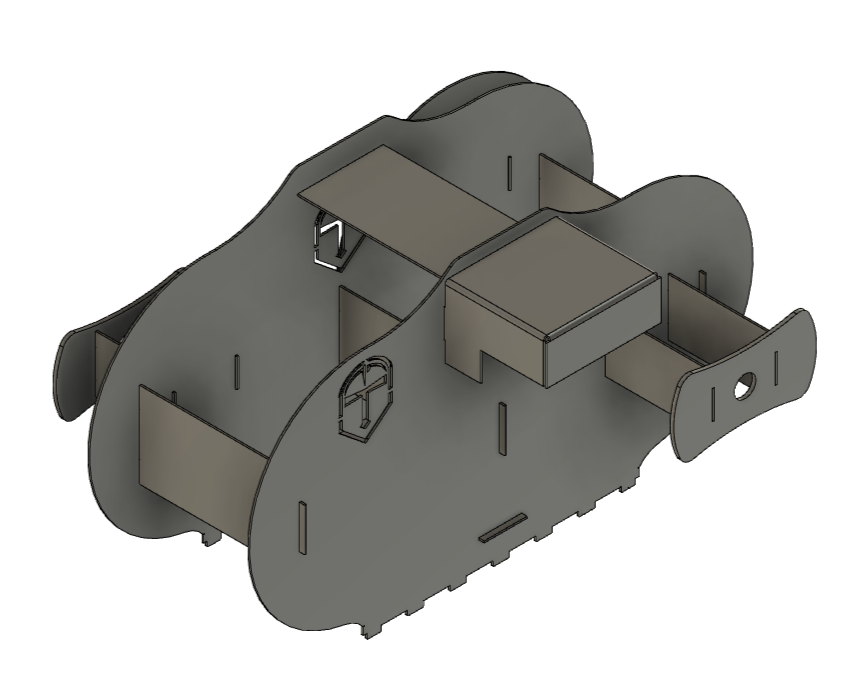

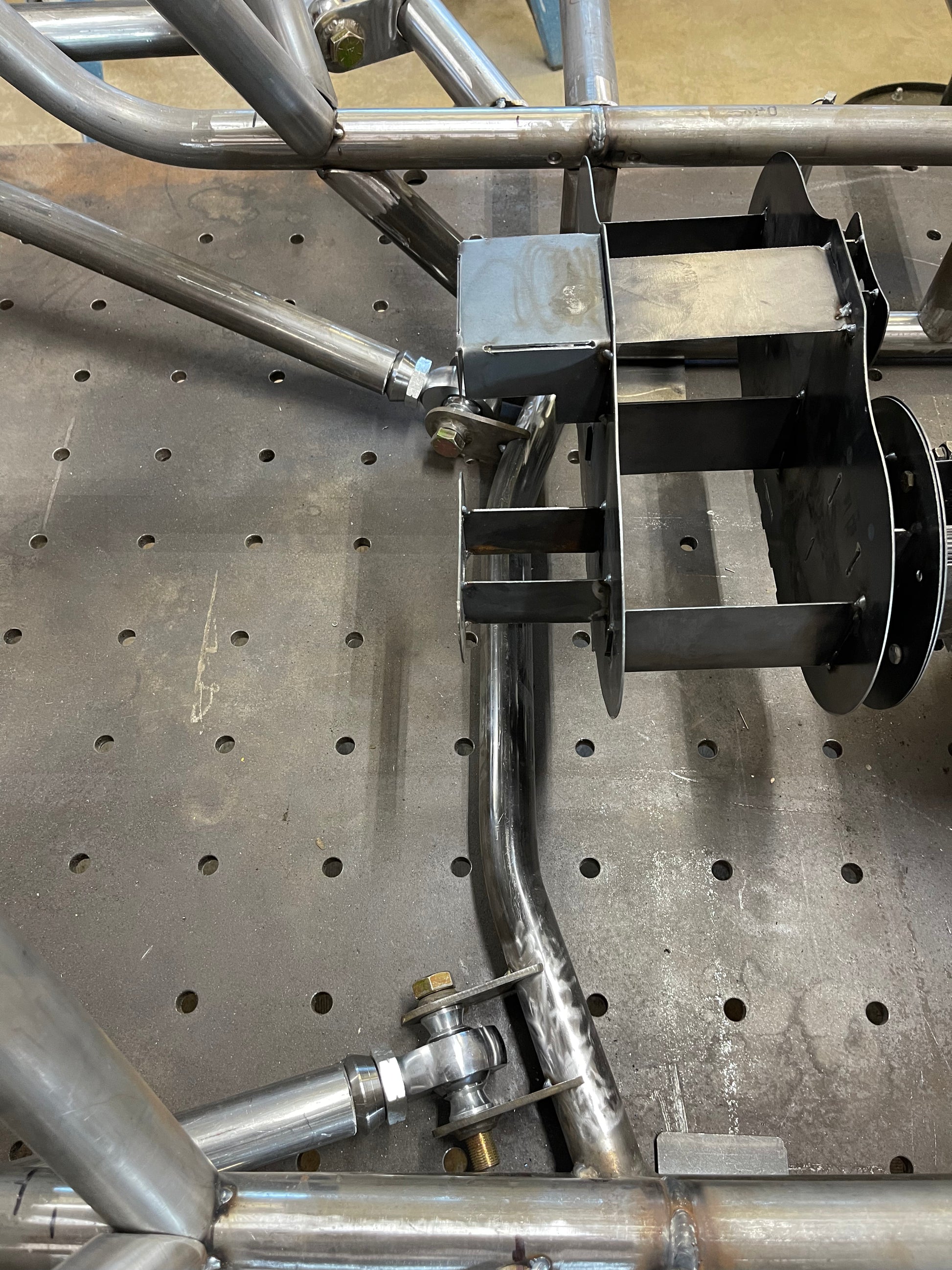

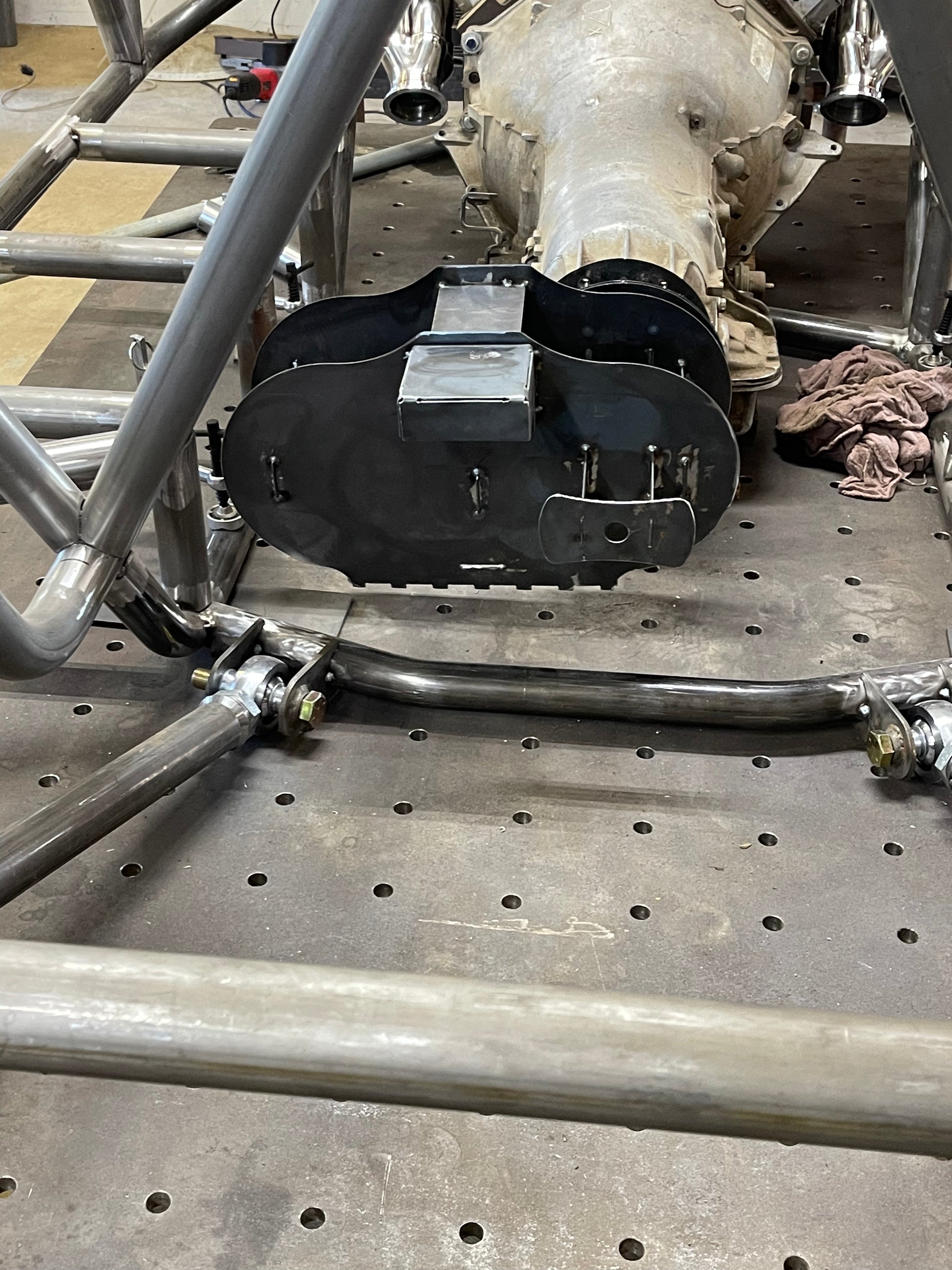

Made of 16ga A1008 cold rolled steel, featuring a precision laser cut tab and slot design. This light weight sheetmetal  mock-up transfer case is an invaluable tool for anybody waiting on the real thing and/or just don't want to keep lugging around a heavy transfer case. Easy to put in place and move around.

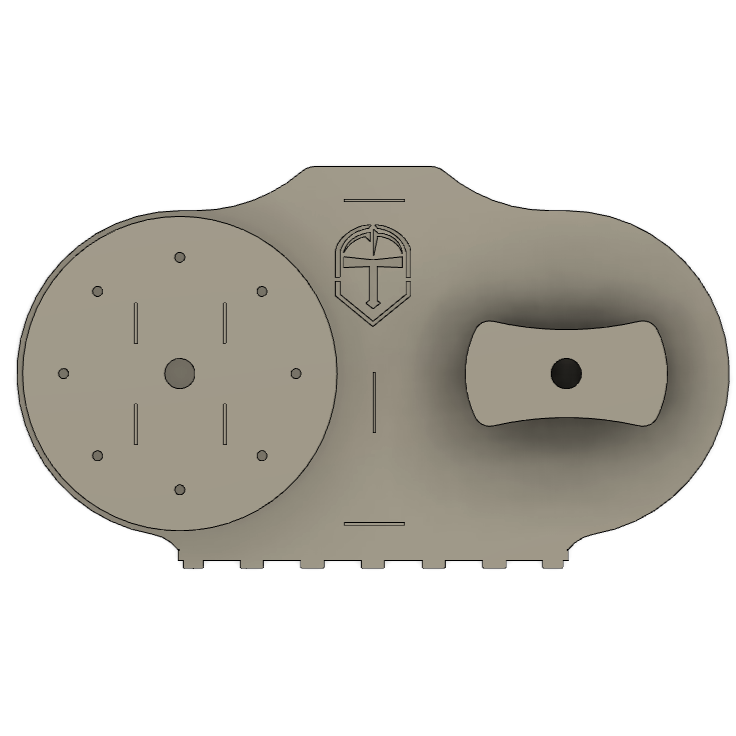

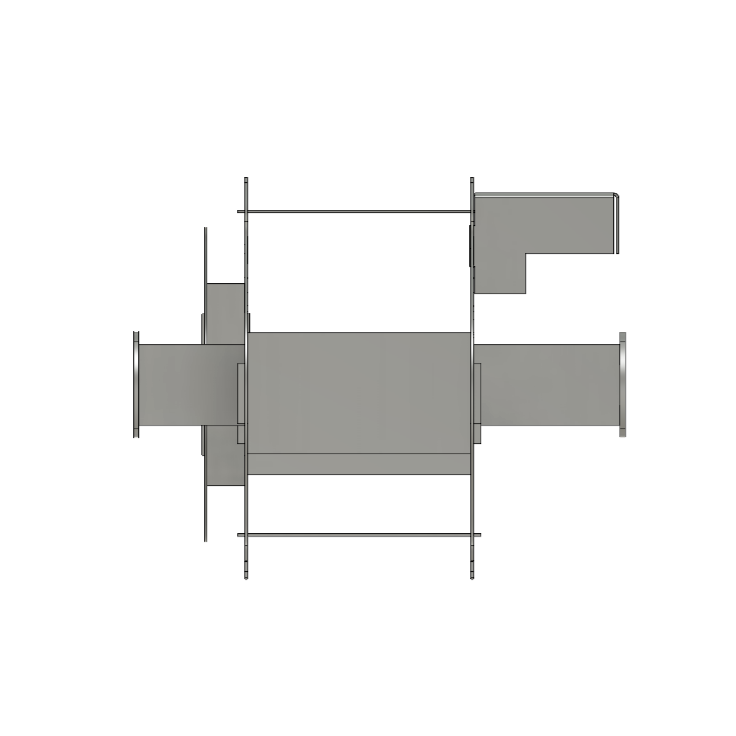

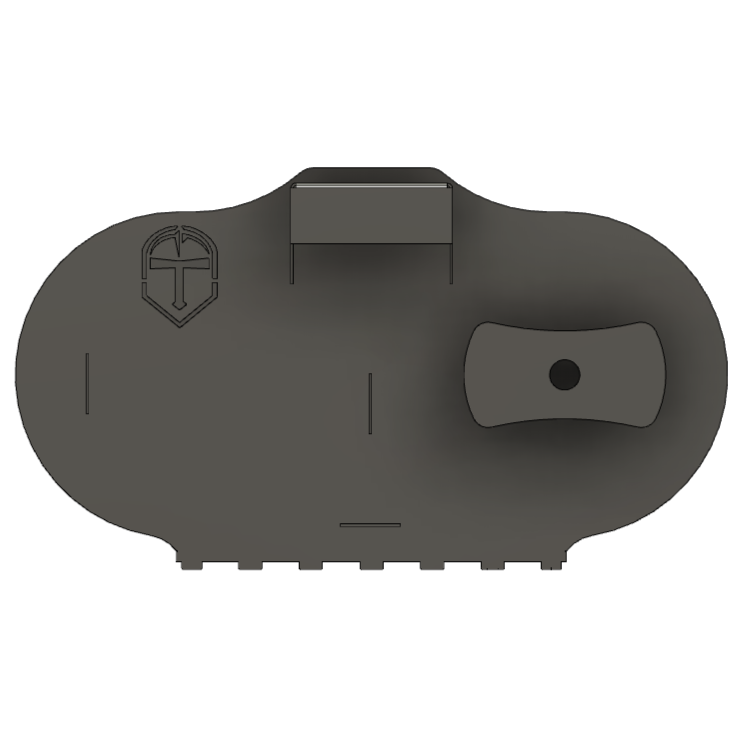

Made to emulate same dimensions of the popular Atlas 2 transfer case with the short non-speedo rear output.  Simply figure in your adapter offset or create a mockup adapter offset and bolt in. This is an excellent placeholder to build around. All dimensions are within .25" of the real thing. Output faces meant to represent the Ujoint centerline of a 1350/1410 Ujoint. Adjust at your discretion.  (waiting until you get the real transfer case to measure for actual drive shafts is advised)

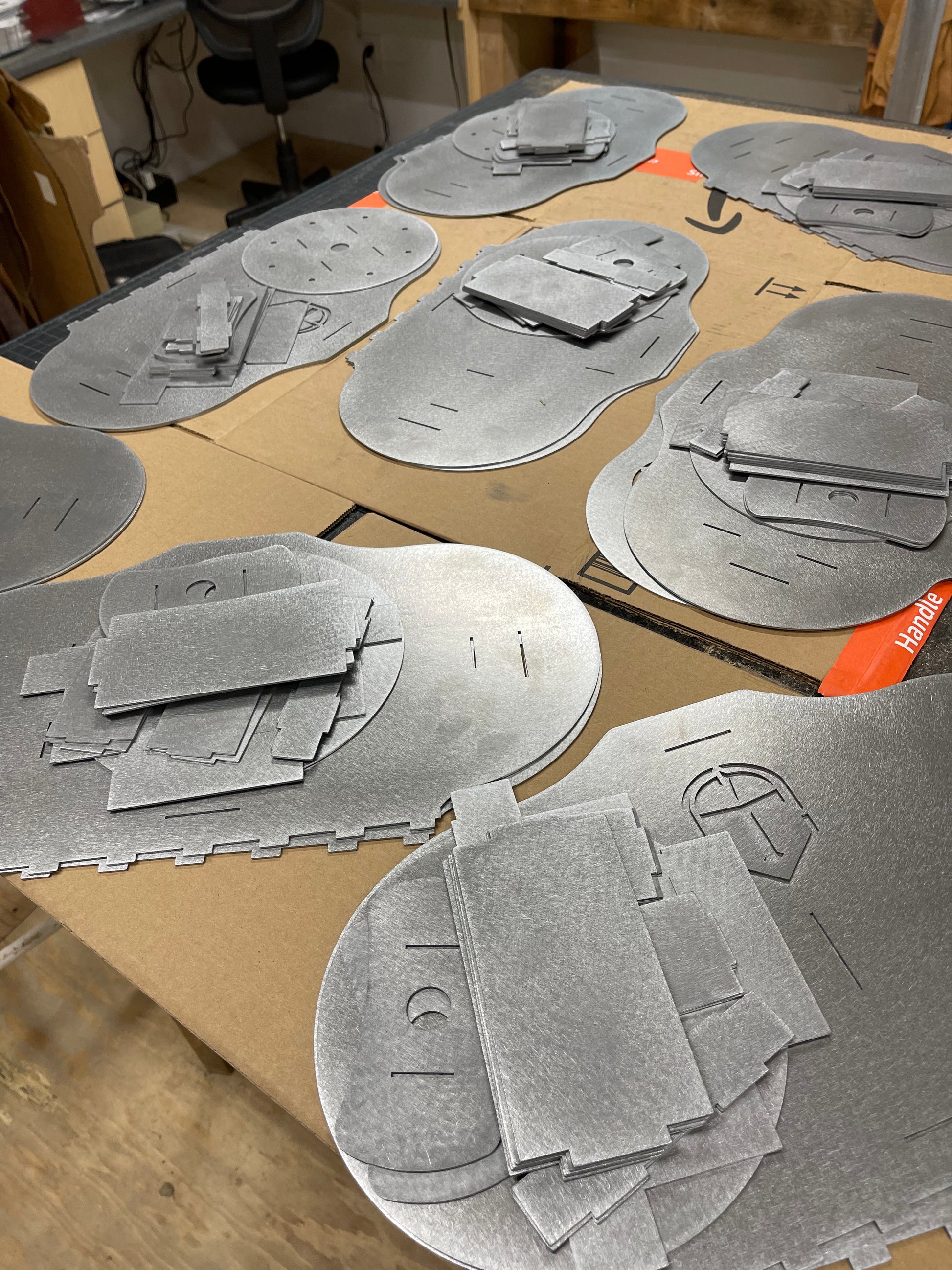

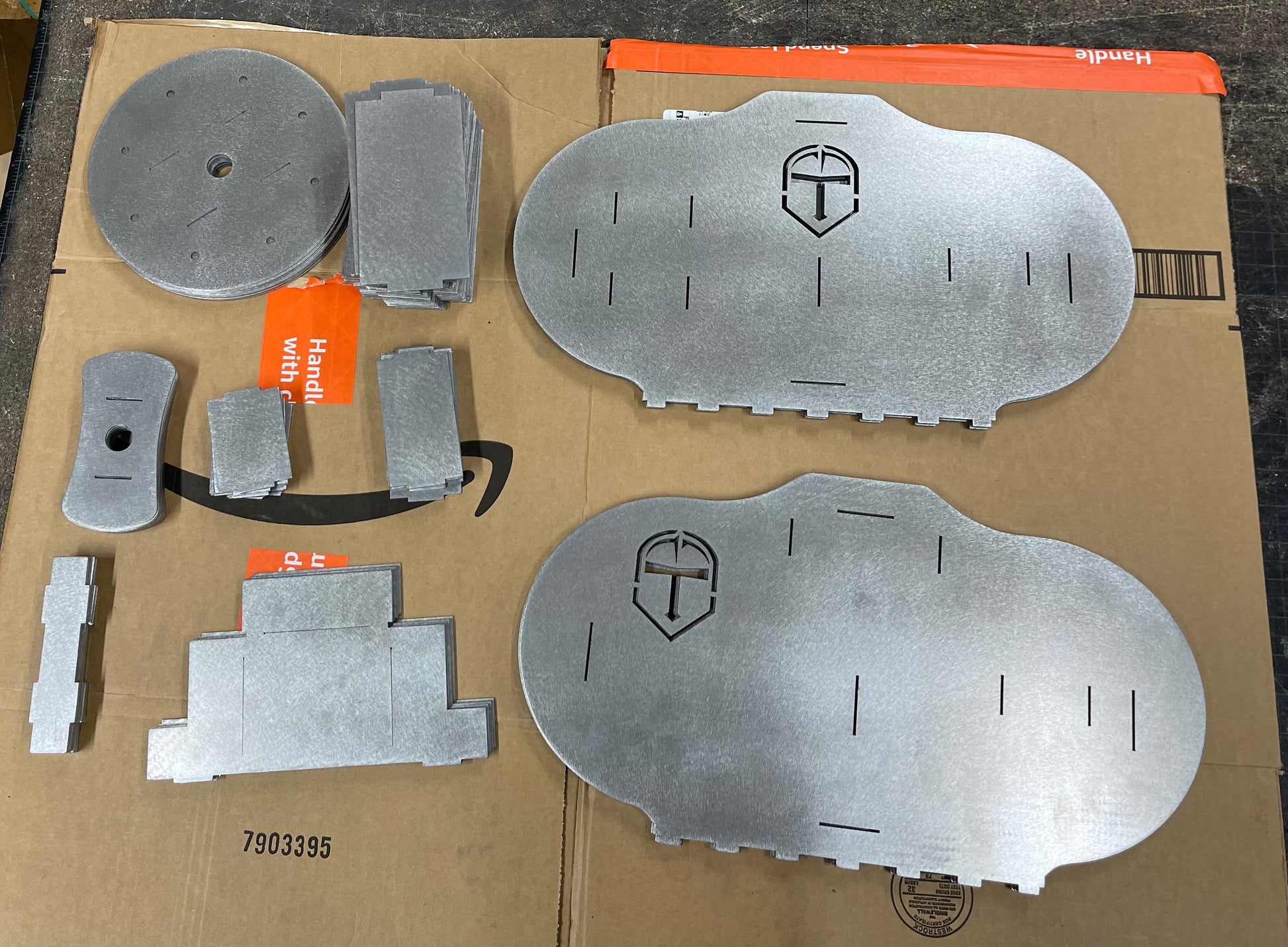

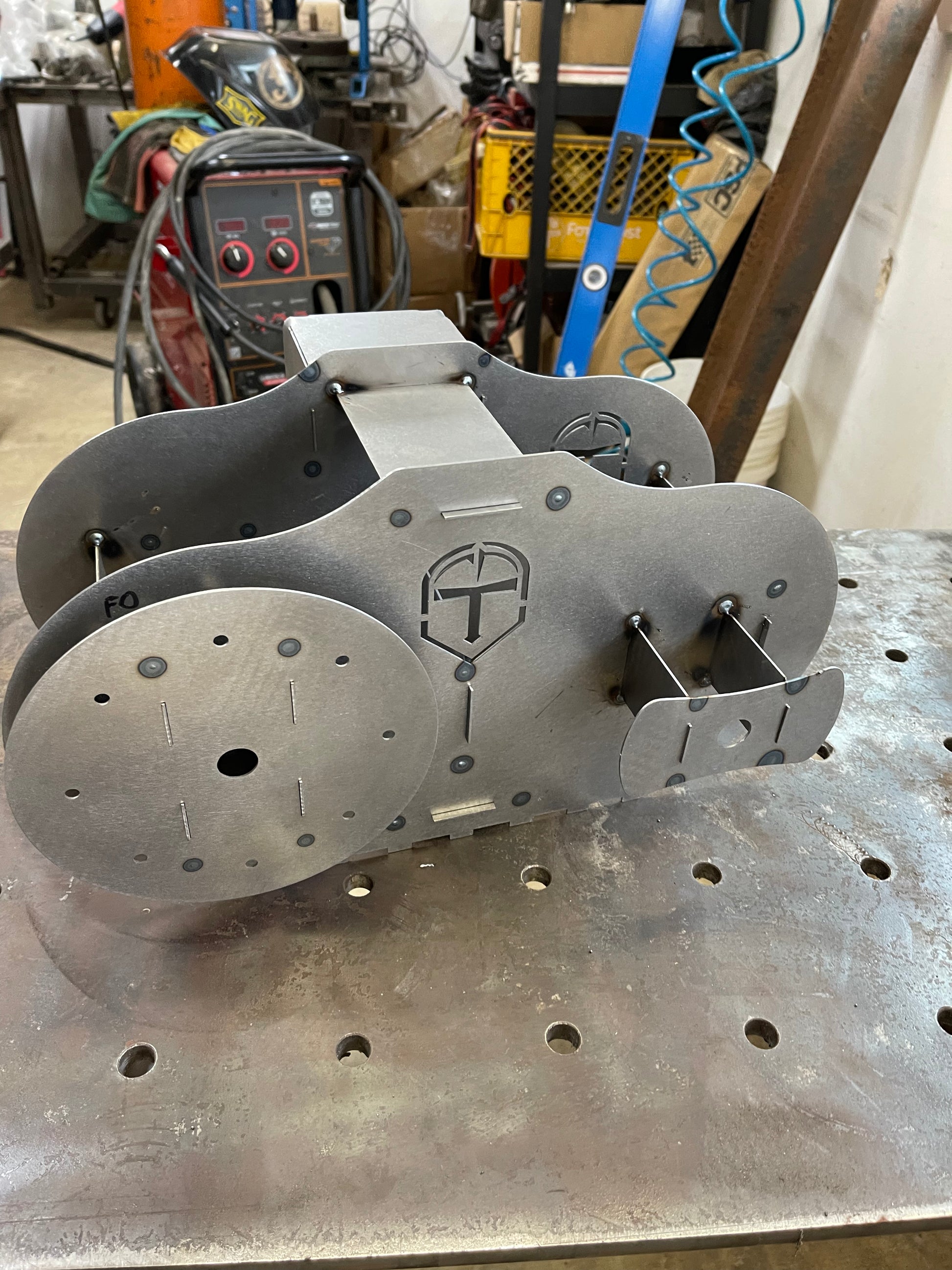

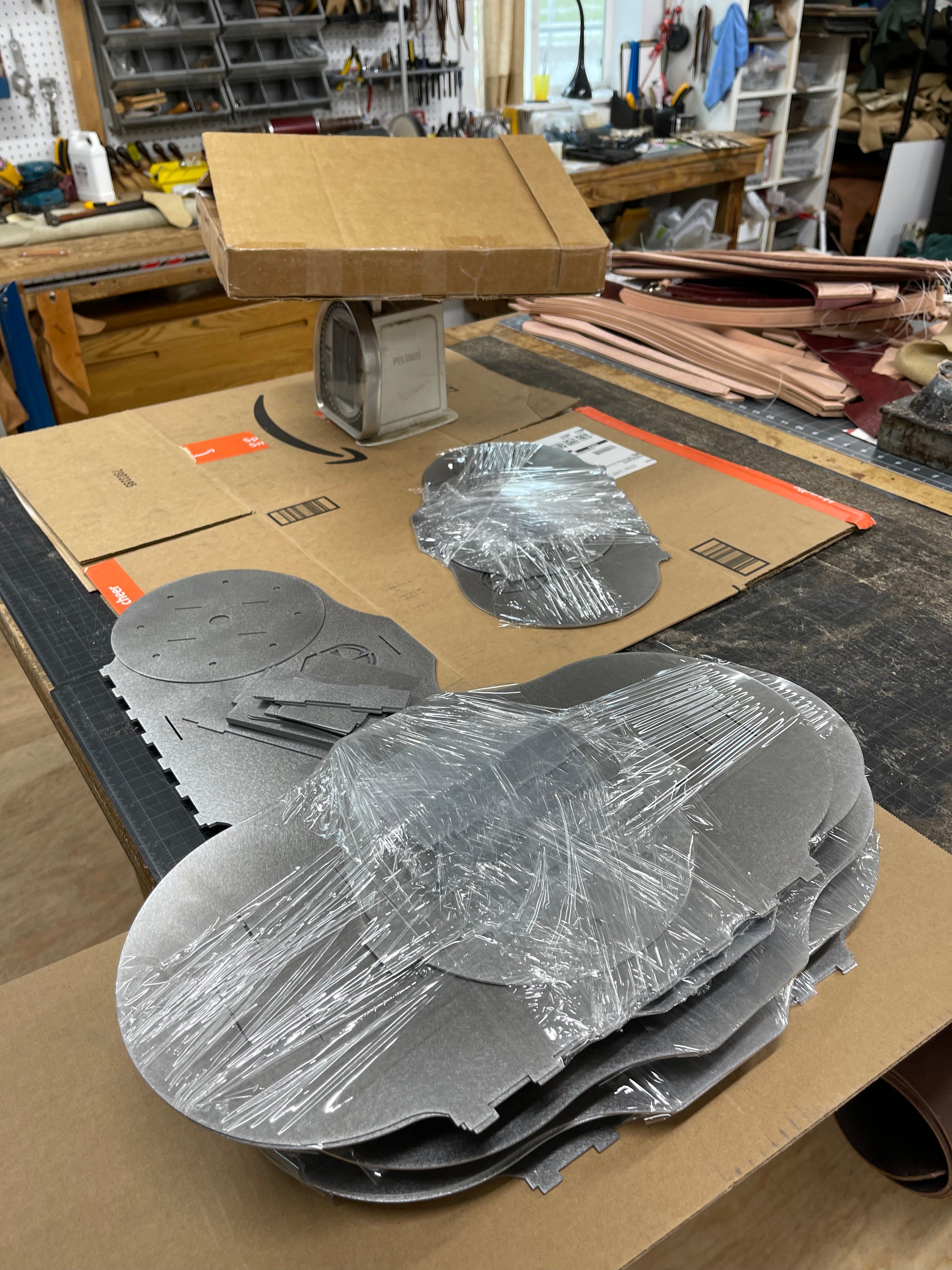

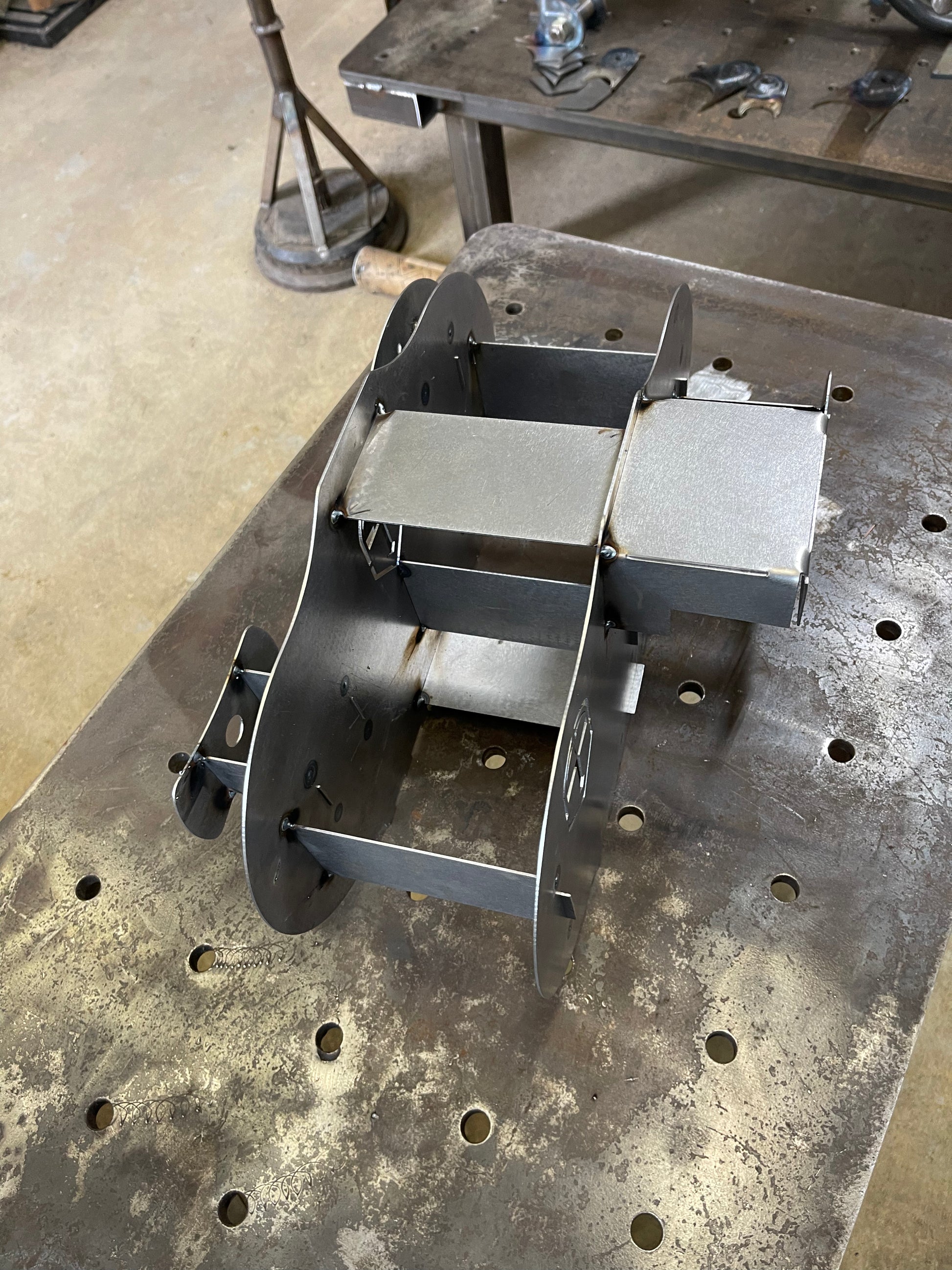

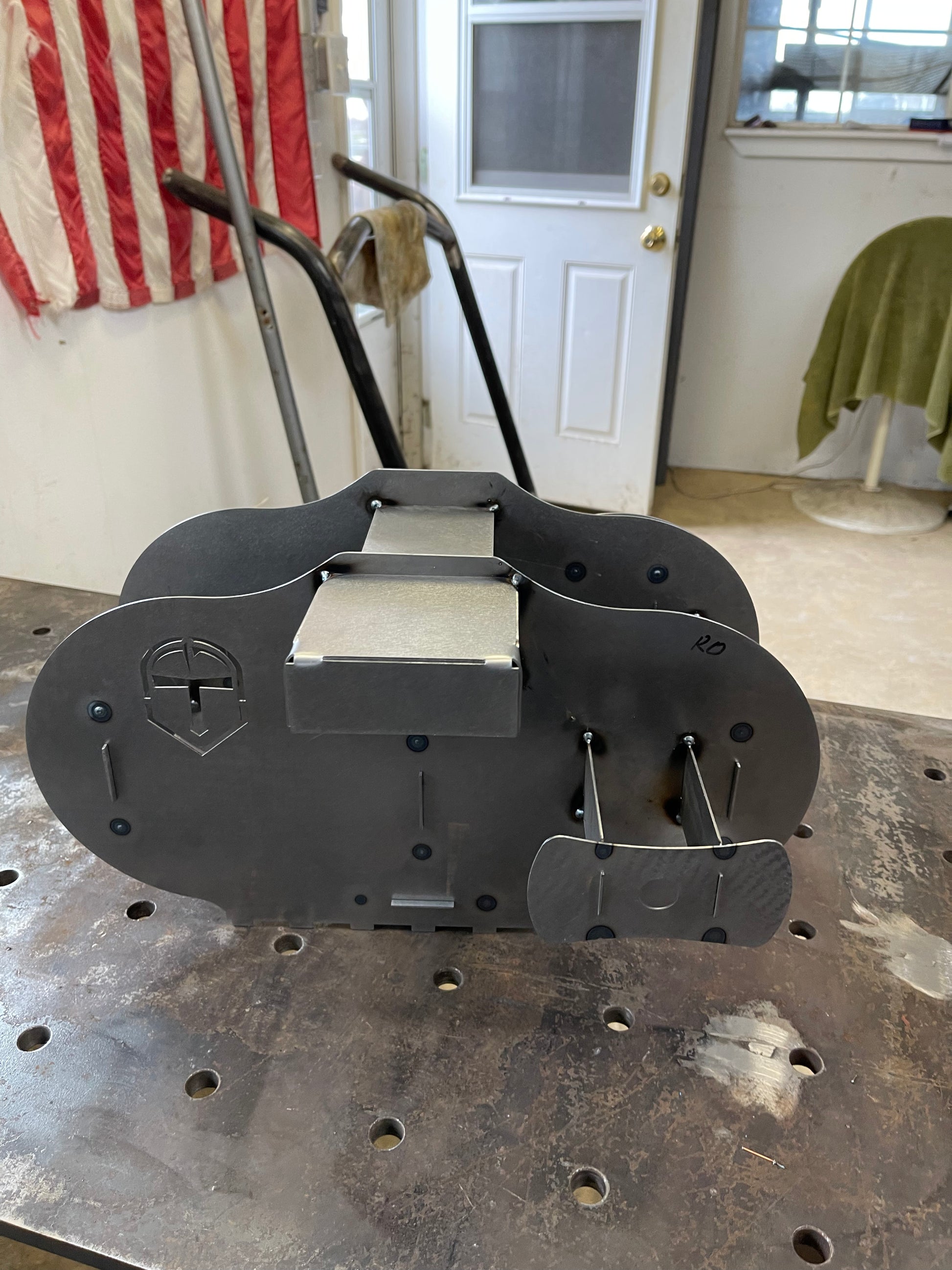

Shipped Flat, assembly (tack welding) required. The mockup case can be configured as a passenger or driver drop front output.

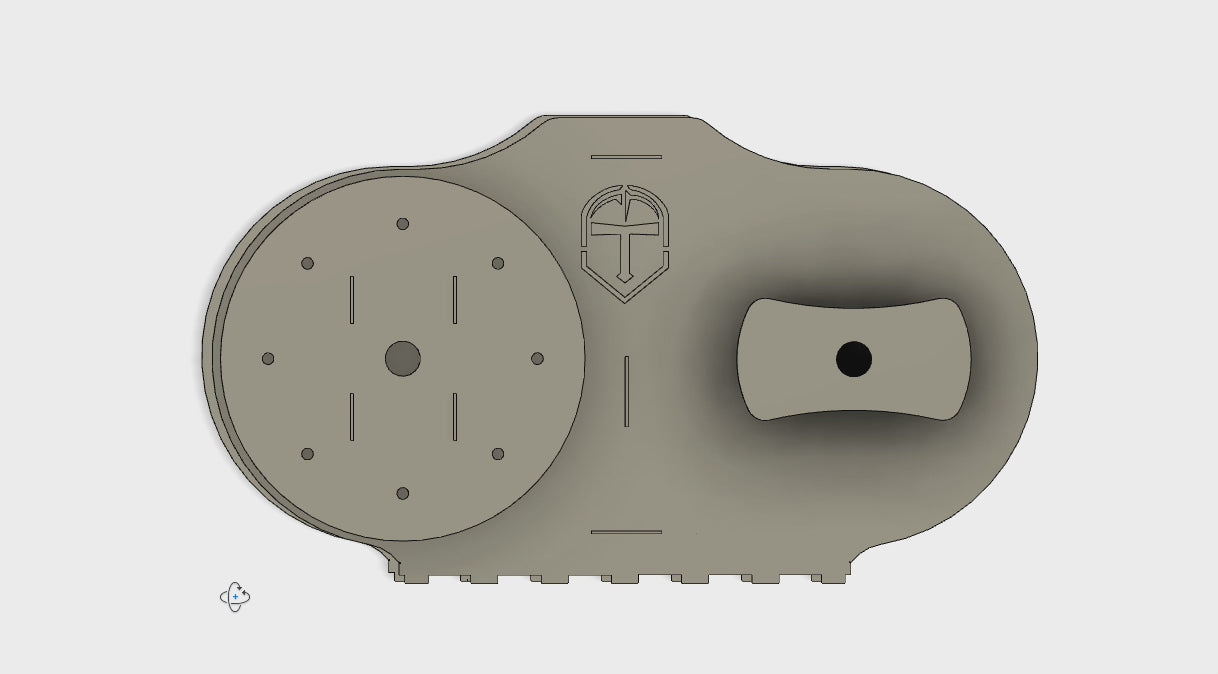

Checkout our complete How-To Assemble Video
