Jack Stand Rack Design Download (.dxf)

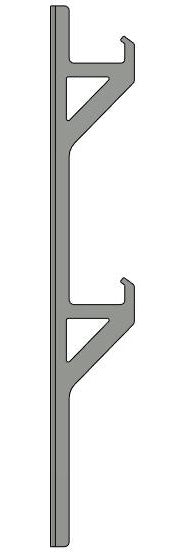

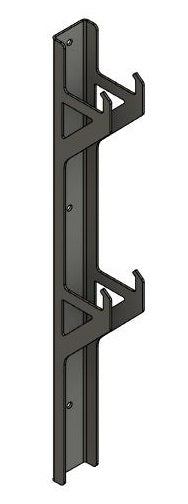

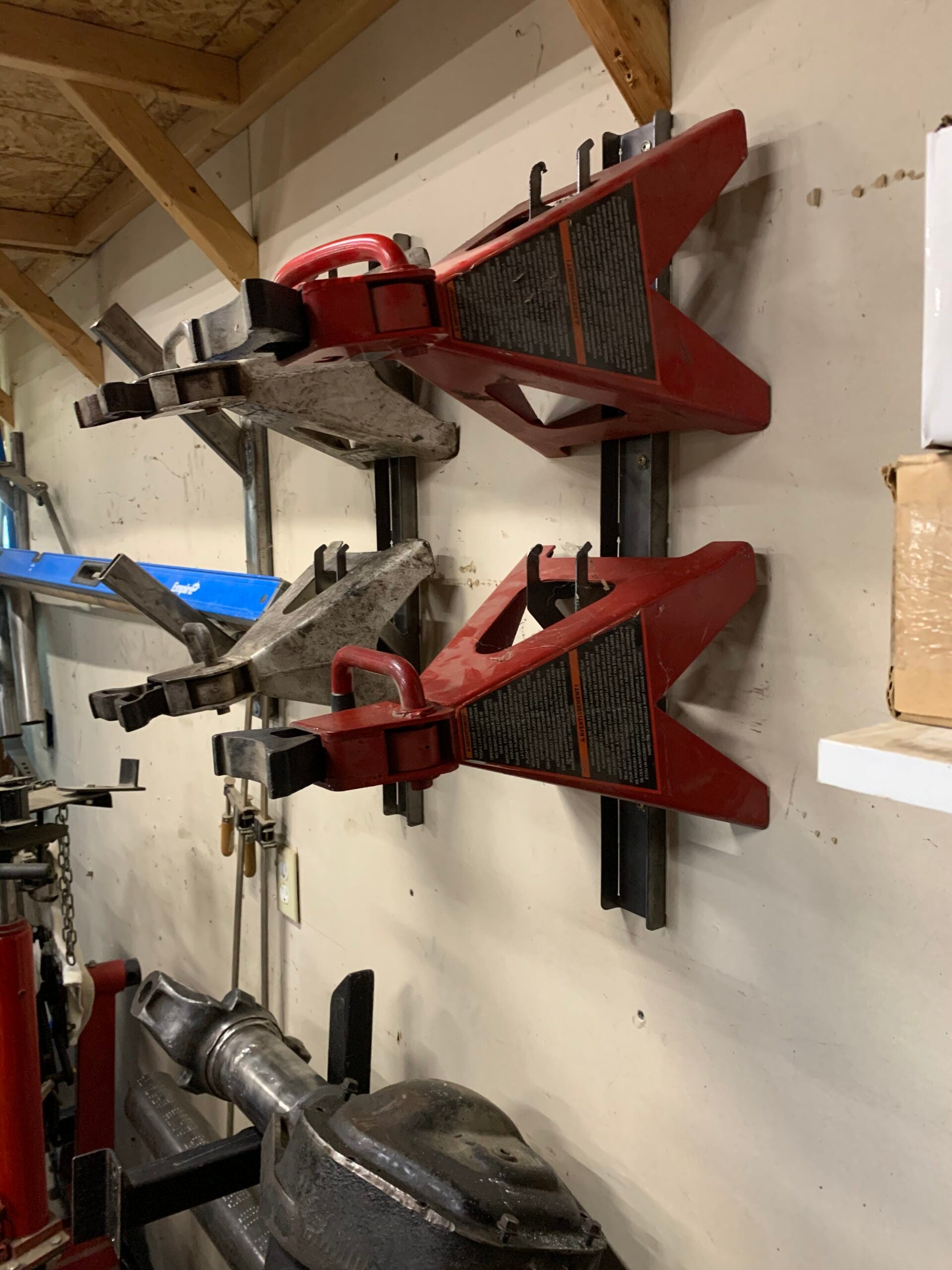

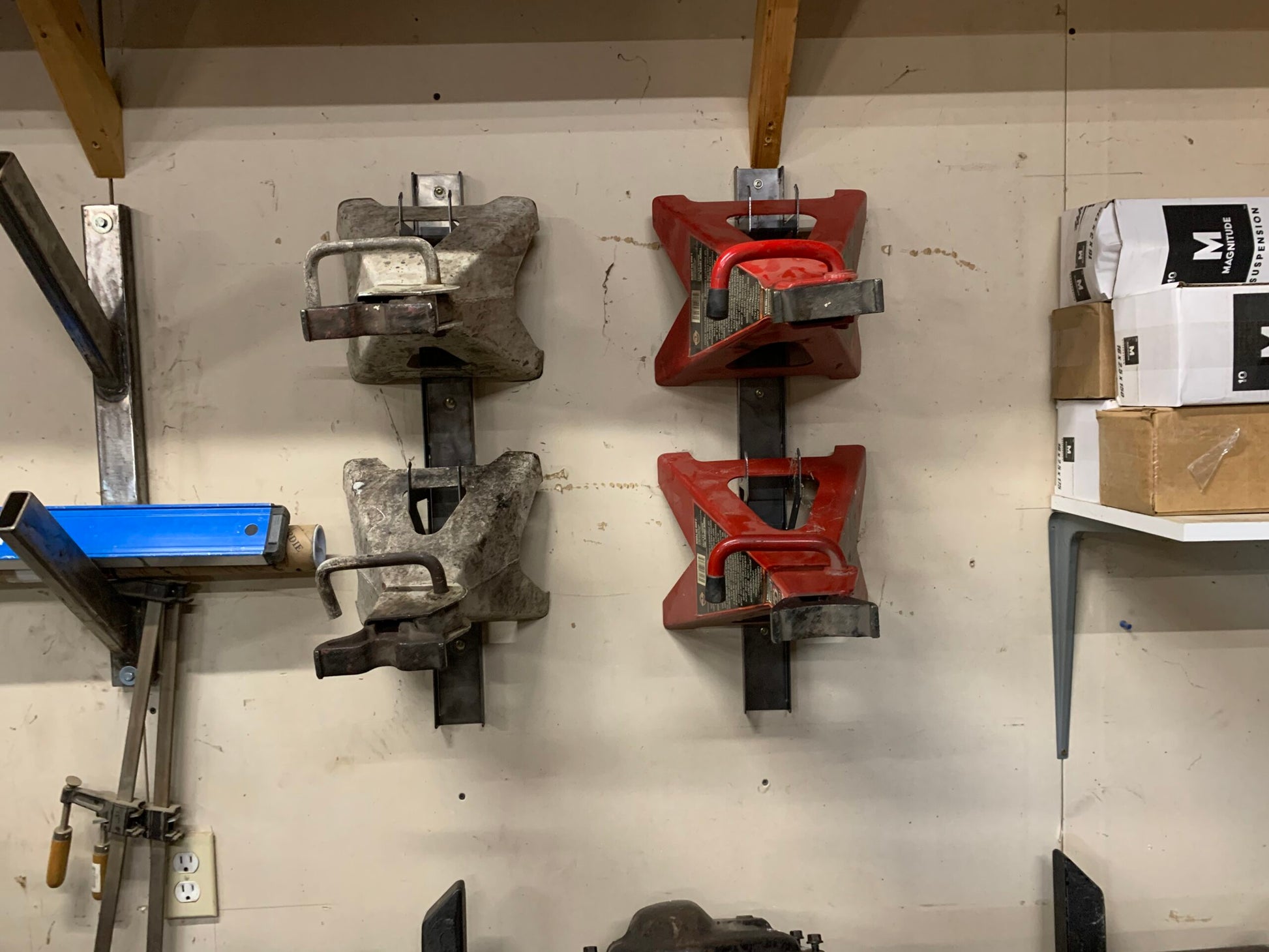

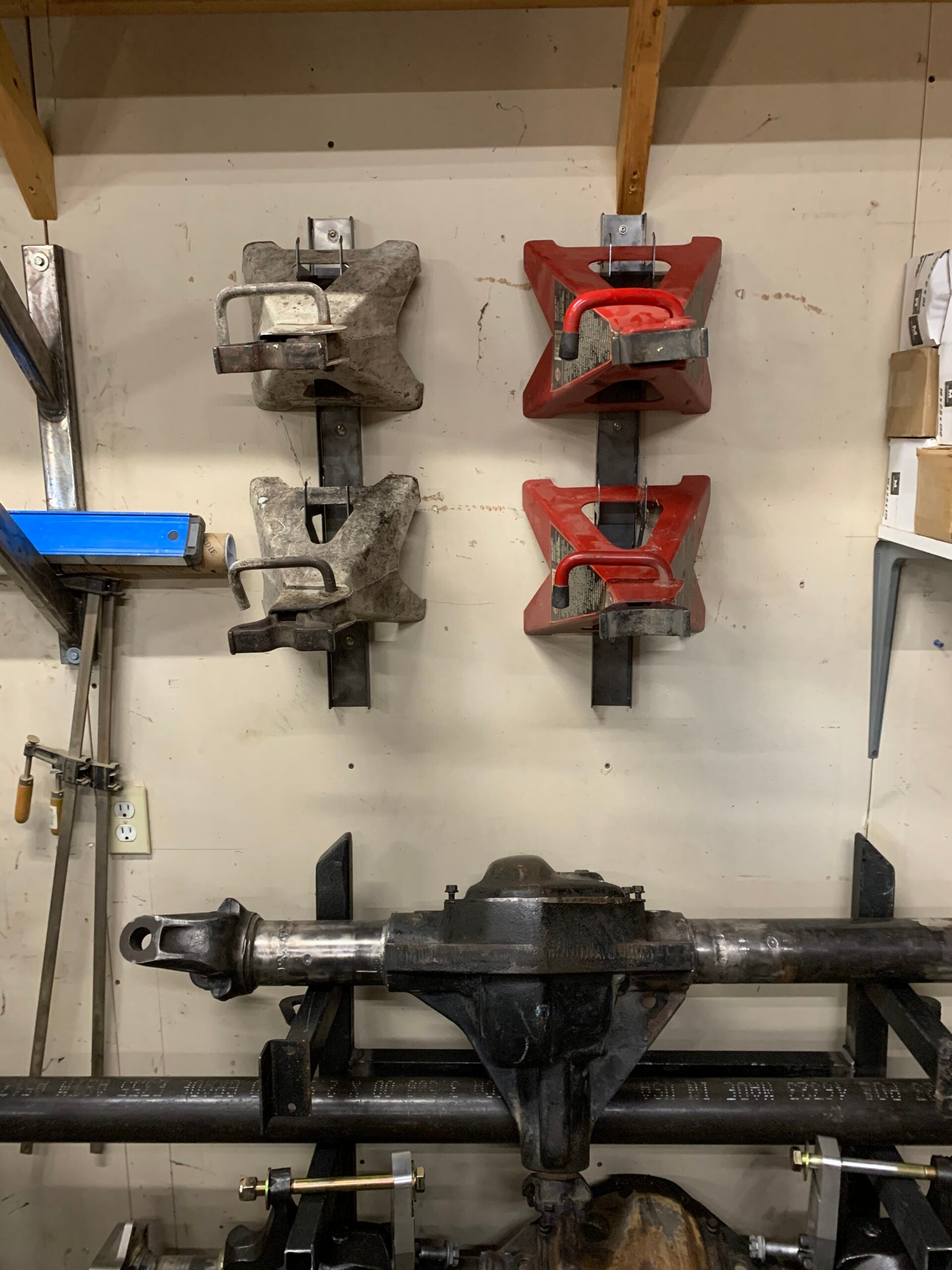

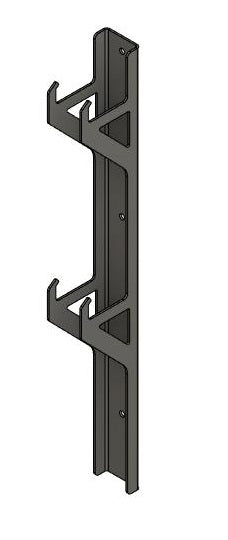

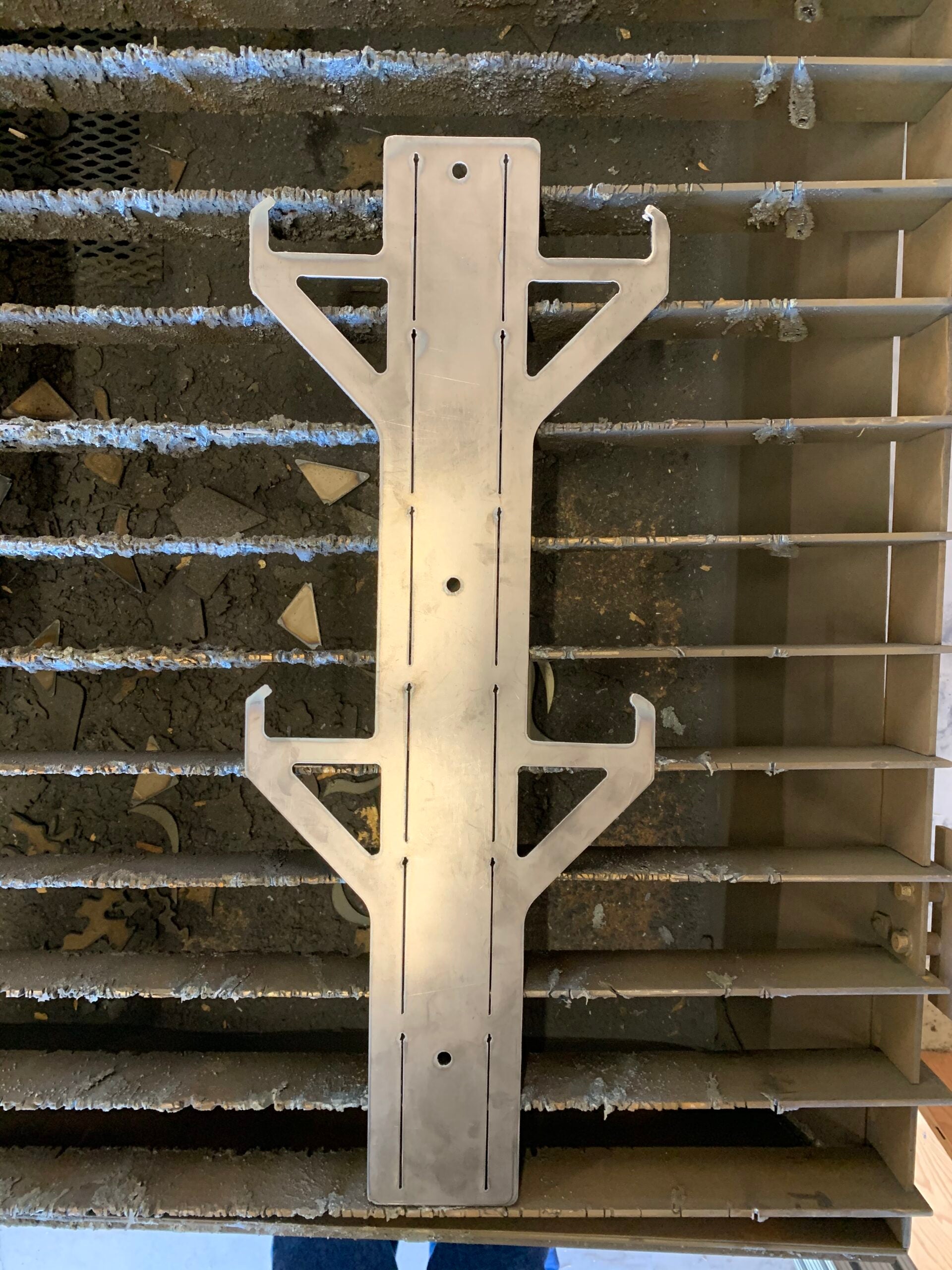

Jack stands are an item that seems to be constantly under foot. Organize your shop with these Jack Stand Racks.. Flat layout is aprox 28" x 11". Relief cuts are built into the design so no press brake or fancy sheetmetal brake needed. In our examples here we used 16ga steel.. Design is known to work with 3 ton, 4 ton, and 6 ton jack stands. Each rack accommodates two jack stands. Each side needs a simple 90 degree bend upward.

***This product is a DIY .dxf design file (digital asset). You will be prompted to download the file upon completion of checkout. You are purchasing the design file(s) for this component so that you can cut them yourself. Designs are created to work with our CNC plasma machine, but should also work with a waterjet/laser machine. Curf width and hole settings and adjustments are the machine owner/operators responsibility. ***
