Stryker - Trail Two Seat Chassis

Stryker - Trail Two Seat Chassis

Regular price $5,100.00 USD
Regular price Sale price $5,100.00 USD
Sale Sold out

The Stryker Chassis Platform is a tested and proven platform based on a chassis originally designed by Jason Locktup Stanley. Years of  testing and tweaking went into this design platform making it a very versatile foundation to build into a killer crawler/trail rig or race car.

Stryker Design Features

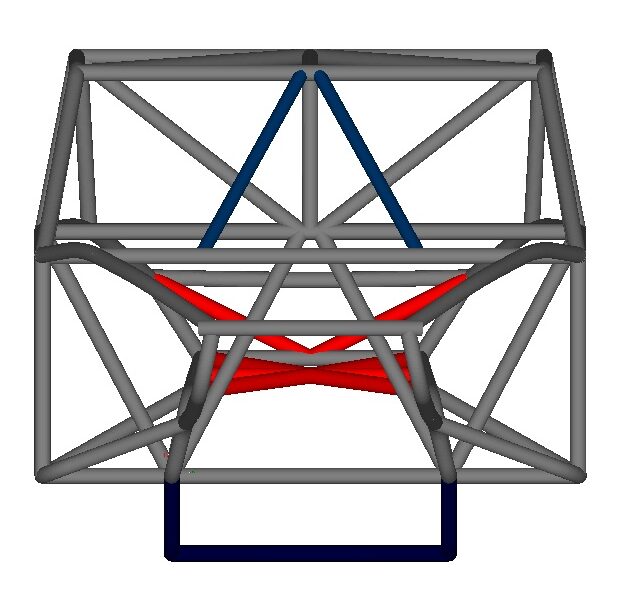

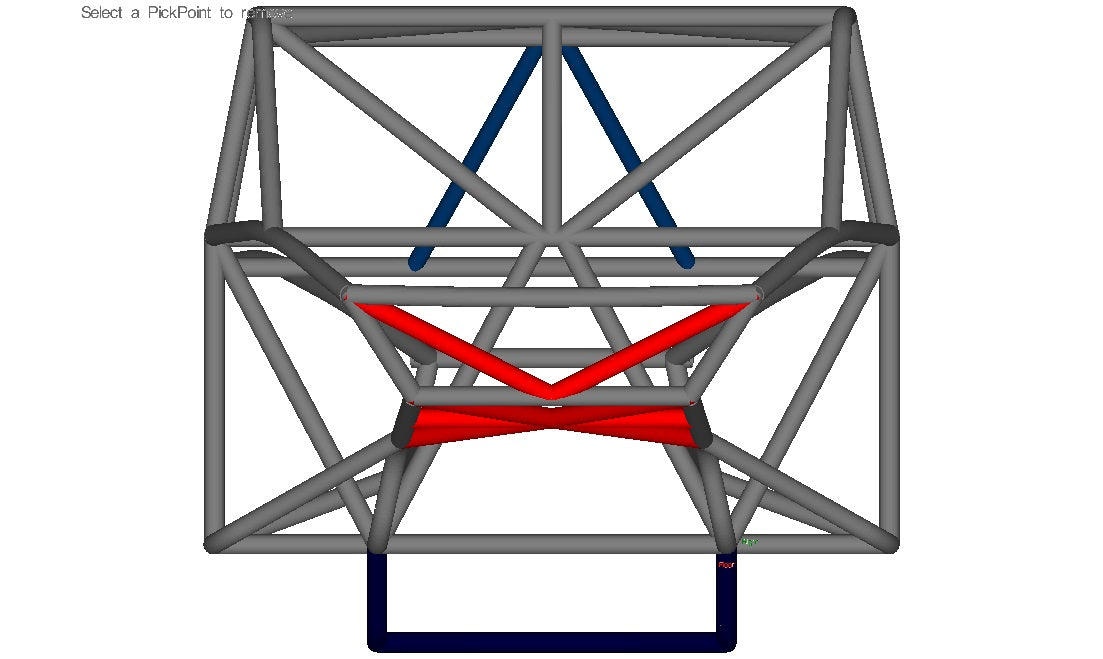

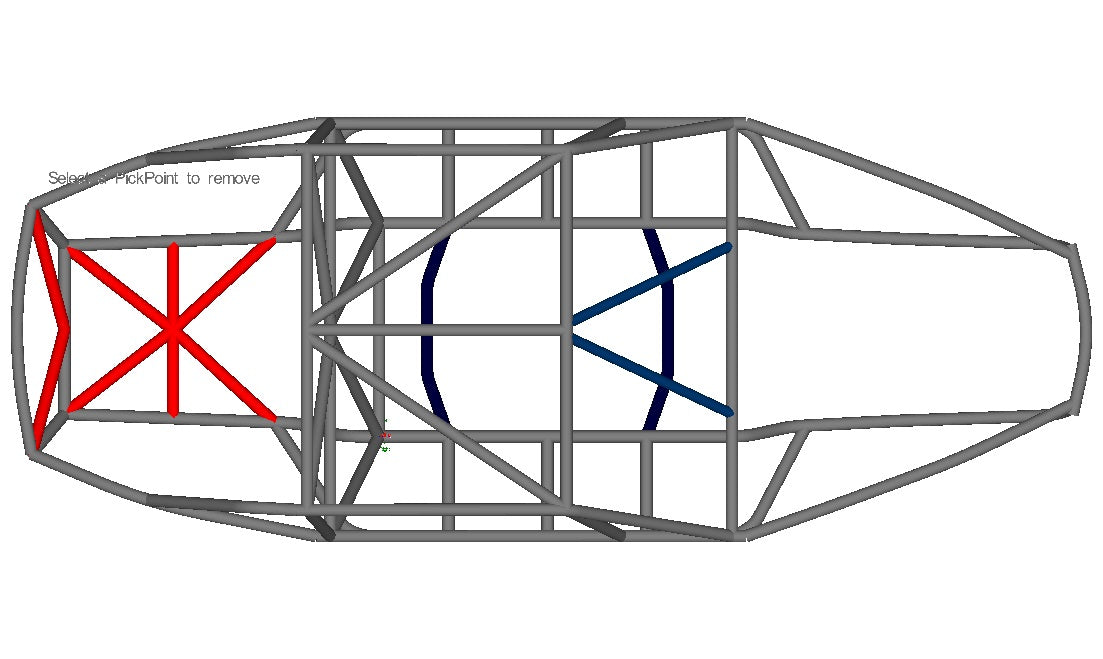

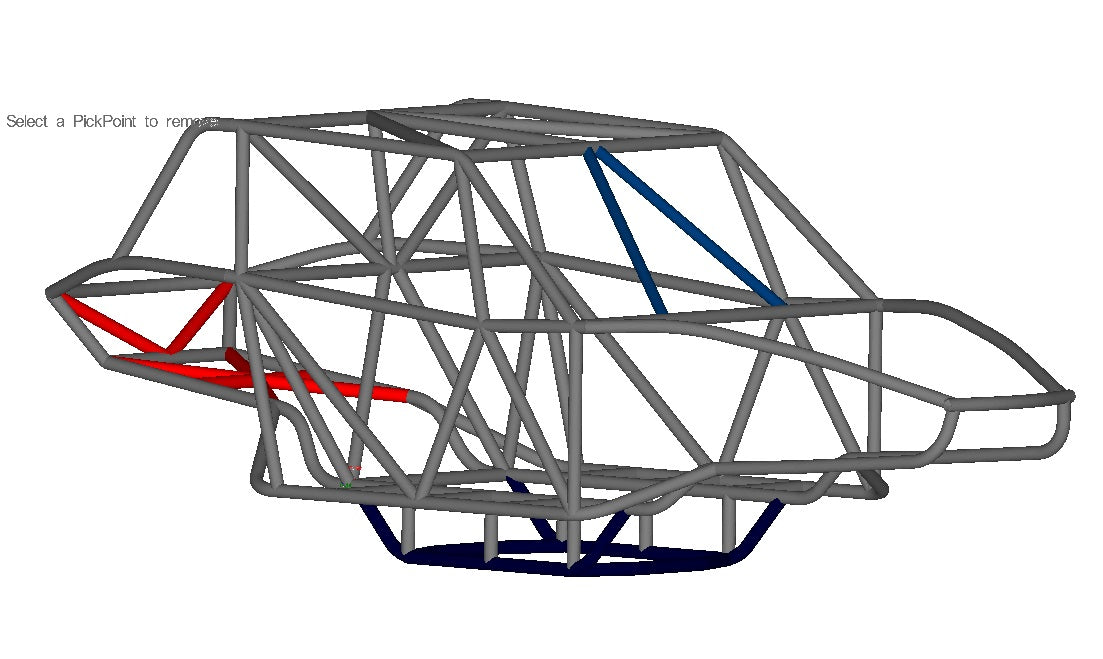

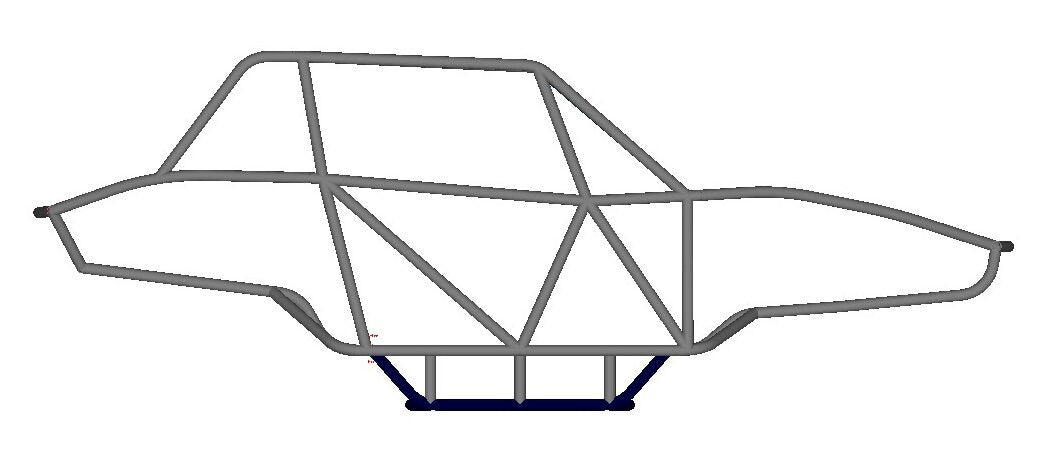

    • ALL DOM (drawn over mandrel) Tube Constriction (Mild Steel)-  1.75” x .188 wall thickness sub frame (tubes shown in dark blue on the drawings). The remainder of chassis is built out of 1.75” x .120 wall thickness tubing (shown in grey on the drawings),  and 1.50" x .120 wall thickness tubes for the window bars (shown in light blue on the drawings)

    • Power & Drivetrain Versatility -  This chassis will accommodate a wide range of power & drivetrain options, from the popular LS V8 engines down to the bulletproof Toyota 4 cylinder Engines.

    • Wheelbase Base Variety  - Midsize Chassis that would accommodate 113" and Up. Wheelbase depends entirely on your application and tire size.

    • Powertrain Cooling - Plenty of room up front for larger engines and cooling options as well as room behind the X brace for a rear radiator and cooling farm.

    • Suspension Variety -  4 Link Front and Rear, Trailing/Leading Arms, Coilovers, ORI's it's this chassis can be configured how you'd like. If your build requires a rear sway bar,  the rear lower bumper tube is designed and built intentionally straight for very clean sway bar packaging.

    • Specs - Overall Chassis Length 153” -Chassis width (inside the cab) 56-3/4” very spacious cab area with plenty of room for big and tall guys.




Safety,  There's NO Compromise


The Stryker comes standard with a full X brace which includes the lower W bracing, and complete roof tube structure. Other chassis on the market today may charge extra for this bracing  and /or make it available as an option, - if at all. Consumer beware.
Base Price

Base price includes a chassis that is tack welded together only (fully welded in key areas to keep the chassis square/straight for transport). All tubing butt joints are interior sleeved/slugged with 1.50" x .120 wall DOM. These joints are fully welded and plug welded. Coped joints are de-burred, beveled and cleaned, ready for you to weld.
Options

Several optional add ons available. Examples include:

    • Fully Welded
    • Additional Bracing/Tubes (tubes shown in red on the drawings)
    • Motor Mount Bracketry
    • Removable Lower Cross- members (belly pan)
    • Fuel cell mounts. A mount can be custom made depending on your application, however the JAZ 22 gal. bladder cell fits well.
    • Rocker rub rails
    • And more

Local Pickup preferred. Located in Wilton, CA 95693
