Tubing Multi Fixture .DXF Design

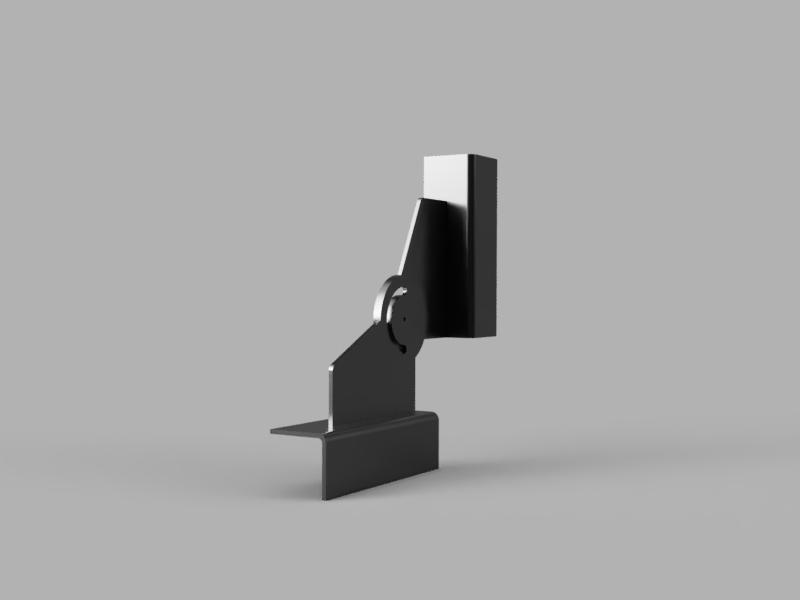

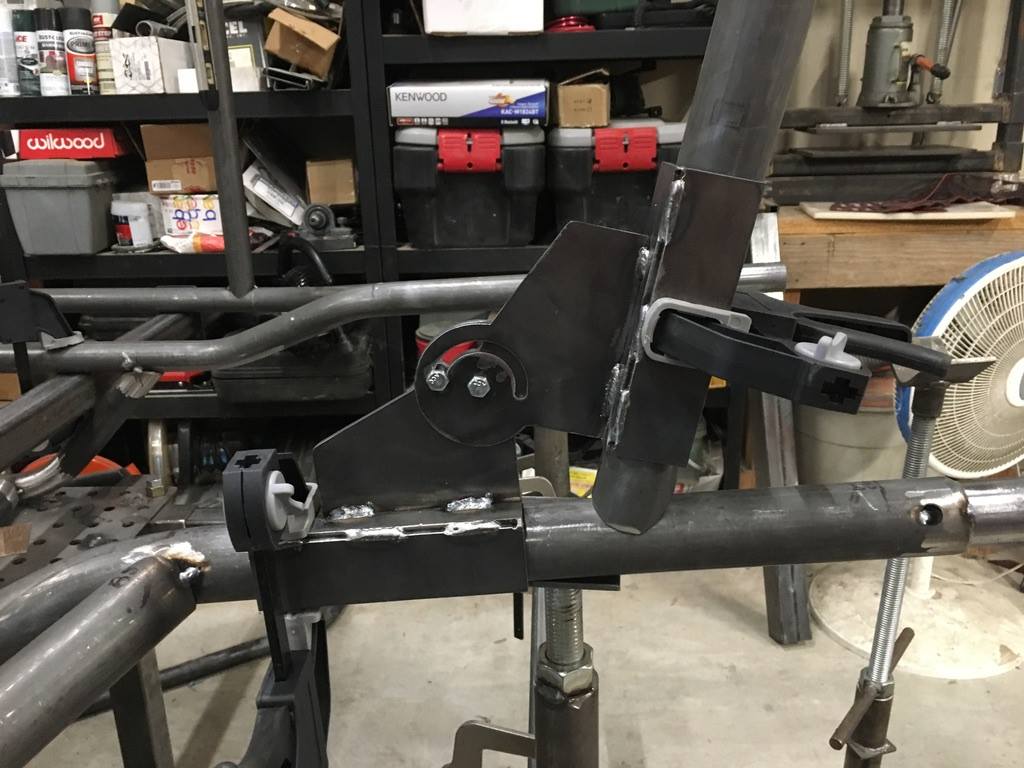

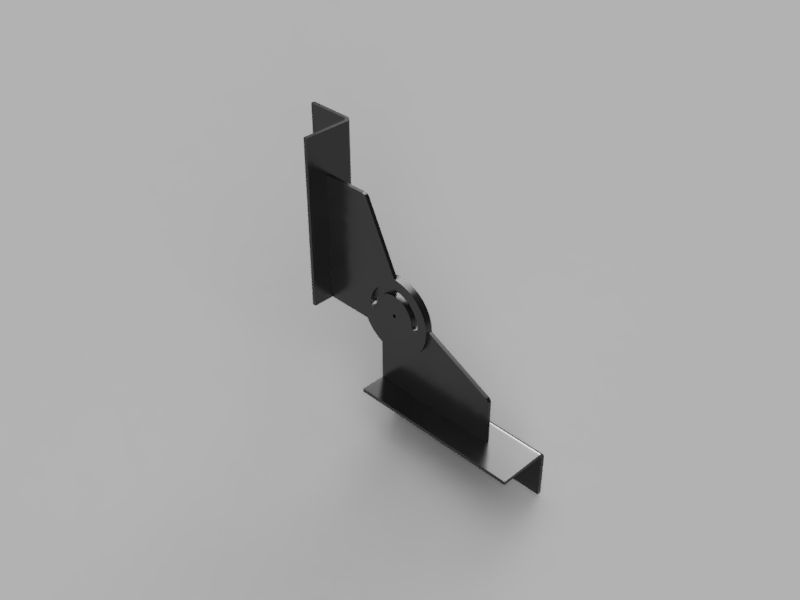

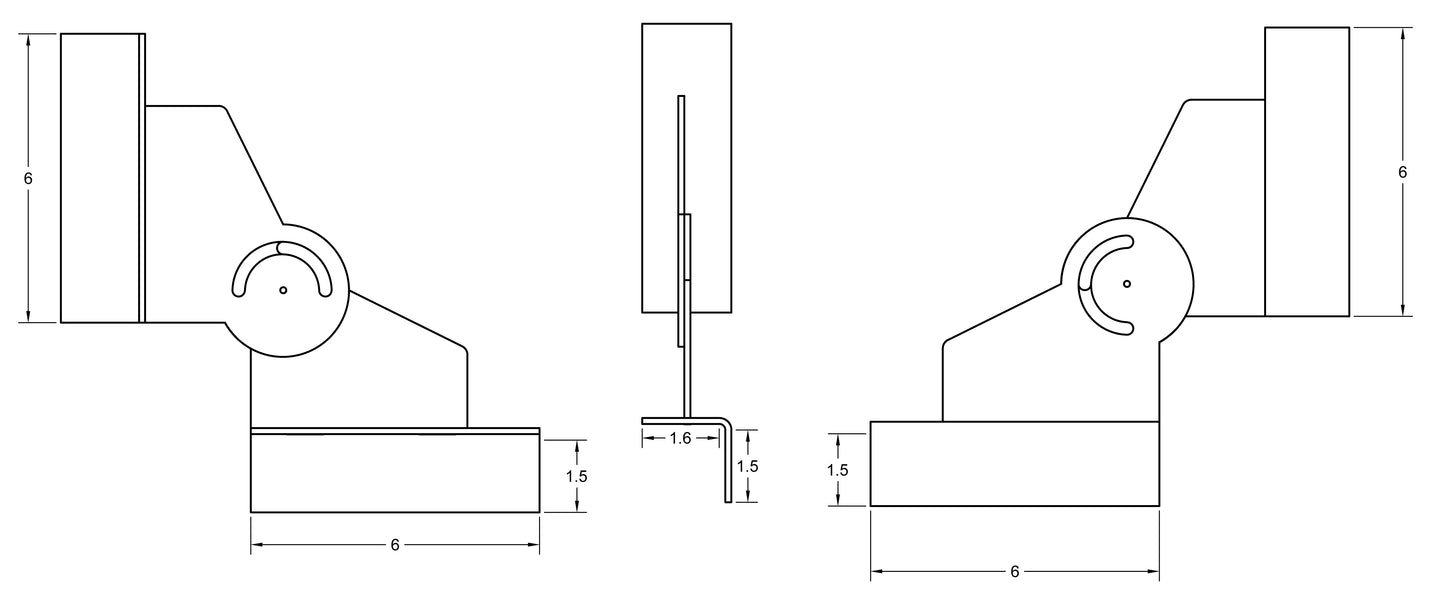

 I designed this tool specifically to work as a 3rd set of hands when fitting up and tacking chassis tubes together. Angle legs are 1.5″ wide by 6″ long making the fixture perfect for use with 1.75 round tube. This tool would also be work great for working with 1.5″ + square tube. Designed to work with the Harbor Freight’s Ratcheting Bar Clamps, found HERE or any clamp with similar rubber clamping pads that grip round tube.

***This product is a DIY .dxf design file (digital asset). You will be prompted to download the file upon completion of checkout. You are purchasing the design file(s) for this component so that you can cut them yourself. Designs are created to work with our CNC plasma machine, but should also work with a waterjet/laser machine. Curf width and hole settings and adjustments are the machine owner/operators responsibility. ***
